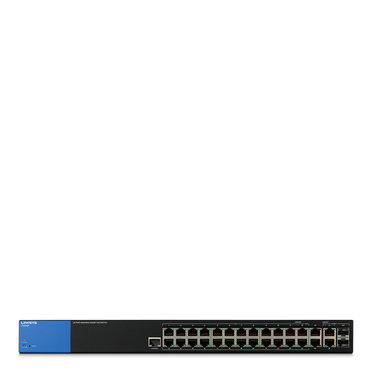

Linksys LGS528P-EU Business 24-Port Gigabit PoE+ (192W) Managed Switch

Add to wishlist
Compare
  • Two combo mini-GBIC (SFP) ports
  • Integrated Power Over Ethernet Plus (PoE+)
  • Layer 3 static routing
  • IPv6 Support
  • Advanced QoS
  • Advanced Security
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard

  • Model Name:

    LGS528P

  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3z
    • IEEE 802.3ae
    • IEEE 802.3x
    • IEEE 802.3ad
    • IEEE 802.3az
    • IEEE 802.1D
    • IEEE 802.1w
    • IEEE802.1Q/p
    • IEEE802.1X
  • Number of Ports with PoE+ Support:

    24

  • Memory:

    128 MB

  • LEDs:

    System (blue/yellow), Link/Act/PoE (green/green), Max PoE (amber)

  • System Power Consumption without PoE+:
    • 110V: 30.73W
    • 220V: 28.88W
  • Forwarding Rate:

    41.67 Mpps

  • Switching Capacity:

    56 Gbps

  • MAC Address Table Size:

    16K

  • Jumbo Frame (FE, GE):

    9K

  • Fans:

    Yes (two 8,200 rpm)

  • Dimensions (LxWxH):

    440 x 200 x 44.45 mm (17.32 x 7.87 x 1.75 in.)

  • Weight:

    3.12 kg (6.88 lbs.)

  • Power Dedicated to PoE+:

    192W

  • Power Input:
    • 100–240V
    • 50–60 Hz
    • (3.5A max)
  • Operating Temperature:

    0 to 50°C (32 to 122°F)

  • Storage Temperature:

    -20 to 70°C (-4 to 158°F)

  • Operating Humidity:

    10 to 90% RH

  • Storage Humidity:

    10 to 90% RH (non-condensing)

  • Spanning Tree:

    IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

  • Link Aggregation:

    IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

  • VLAN:

    Port-based and IEEE 802.1Q tag-based VLANs

  • Auto Voice VLAN:

    VLAN voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

  • IGMP Snooping:

    IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters; supports 256 multicast groups

  • HOL Blocking Prevention:

    Head-of-line (HOL) blocking prevention

  • Port Mirroring:

    Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer

  • Security Features:
    • IEEE 802.1X radius authentication,
    • DHCP snooping
    • IP-MAC-Port binding
    • IP source guard
    • ARP inspection
    • STP root guard
    • STP BPDU guard
    • DHCP relay
    • Port security supports limited dynamic lock and locked MAC address
    • Management access control
  • Storm Control:

    Broadcast, unknown-unicast, and multicast

  • Access Control:

    Support up to 512 rules for enhanced security and/or advanced QoS policy: allow, deny, or rate limit based on Layer1 to 4 protocol fields at packet header level with MAC ACL and IP ACL

  • RMON:

    Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis

  • Management Interface:
    • HTTP
    • HTTPS
  • Other Management:

    Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP

  • SNMP:
    • Version 1
    • Version 2c
  • QoS – Class of Service:

    Port-based, IEEE 802.1p priority-based, IPv4/v6 IP DSCP-based

  • Combo Ports (RJ45 + SFP):

    2 combo on ports g27, g28

  • Copper FE/GE Ports (RJ45):

    g01–g13, g14–g26

  • Green Power Mode:

    EEE+, Short Reach + Energy Detect

  • QoS – Priority Levels:

    4 hardware queues

  • QoS – Scheduling:

    Priority queuing and weighted round robin (WRR)

  • Total System Ports:

    28GE
