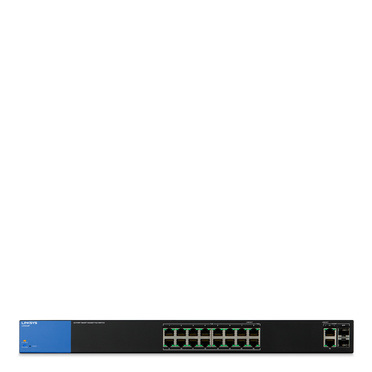

Linksys LGS318P Business 16-Port Gigabit PoE+ Smart Managed Switch

Add to wishlist
Compare
  • Integrated Power Over Ethernet Plus
  • Proven Performance and Reliability
  • Easy Configuration and Management
  • Advanced Network Security
  • IPv6 Support
  • Enhanced QoS
  • Enhanced Security
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard

  • Model Name:

    LGS318P

  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3z
    • IEEE 802.3x
    • IEEE 802.3ad
    • IEEE 802.3az
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.1d
    • IEEE 802.1q/p
    • IEEE 802.1X
  • Number of Ports with PoE+ Support:

    16

  • Memory:

    128 MB

  • LEDs:

    System (blue), Link/Act/PoE (green/green)

  • System Power Consumption without PoE+:
    • 110V:19.47W
    • 220V:19.39W
  • Forwarding Rate:

    26.79 Mpps

  • Switching Capacity:

    36 Gbps

  • MAC Address Table Size:

    8K

  • Jumbo Frame (FE, GE):

    9K

  • Fans:

    One, 8,200 rpm

  • Dimensions (LxWxH):

    440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)

  • Weight:

    2.784 kg (6.12 Ibs.)

  • Power Dedicated to PoE+:

    125W

  • Power Input:
    • 100–240V
    • 50-60 Hz
    • (2.5A max)
  • Operating Temperature:

    0 to 50°C (32 to 122°F)

  • Storage Temperature:

    -40 to 70°C (-40 to 158°F)

  • Operating Humidity:

    10 to 90% RH

  • Storage Humidity:

    10 to 90% RH (non-condensing)

  • Spanning Tree:

    IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

  • Link Aggregation:

    IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

  • VLAN:

    Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication

  • Number of VLANs Supported:

    128 active VLANs (4,096 range)

  • Auto Voice VLAN:

    VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

  • IGMP Snooping:

    IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

  • HOL Blocking Prevention:

    Head of line (HOL) blocking prevention

  • Port Mirroring:

    Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer

  • Security Features:
    • 802.1x Radius authentication
    • DHCP snooping
    • IP-MAC binding
    • Port security supports limited dynamic lock and locked MAC address
    • Management access control
  • Storm Control:

    Broadcast, flooding, and multicast

  • RMON:

    Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis

  • Management Interface:
    • HTTP
    • HTTPS
  • Other Management:

    Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP

  • SNMP:
    • Version 1
    • Version 2c
  • Firmware Upgrade:
    • Web Browser (HTTP/HTTPS)
    • TFTP
  • QoS – Class of Service:

    Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

  • Combo Ports (RJ45 + SFP):

    2 combo on ports g17, g18

  • Copper FE/GE Ports (RJ45):

    g01–g08, g09-g16

  • Green Power Mode:

    EEE+, Short Reach + Energy Detect

  • QoS – Priority Levels:

    4 hardware queues

  • QoS – Scheduling:

    Priority queuing and weighted round robin (WRR)

  • Total System Ports:

    18GE
