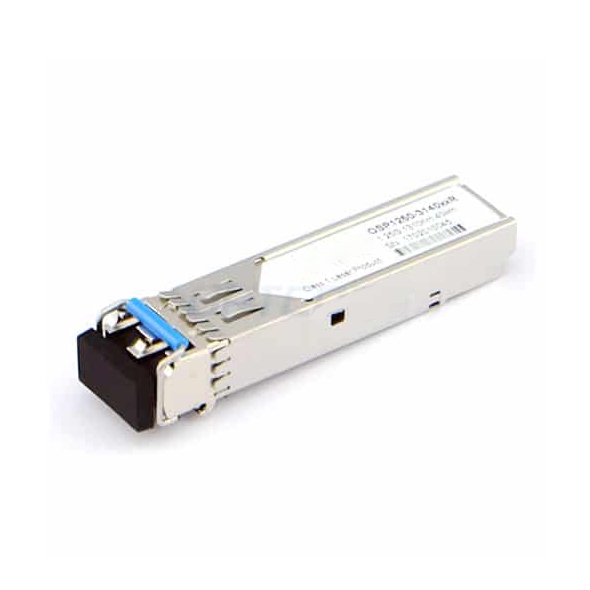

Cisco GLC-EX-SM
Cisco GLC-EX-SM
Specification
| OEM Part Number | GLC-EX-SM | Optcore Part Number | OSP1250-3140DCR-CSC |
| Form Factor | SFP | Data Rate | 1.25Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 0 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > 0 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C
Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1x Fiber Channel, Switch to Switch InterfaceGigabit Ethernet, Switched Backplane Applications
Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11 RoHS |
ر.س120.00 ر.س150.00
Cisco GLC-EX-SM
Specification
| OEM Part Number | GLC-EX-SM | Optcore Part Number | OSP1250-3140DCR-CSC |
| Form Factor | SFP | Data Rate | 1.25Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 0 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > 0 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C
Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1x Fiber Channel, Switch to Switch InterfaceGigabit Ethernet, Switched Backplane Applications
Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11 RoHS |
