Belden, Belden Communication cable, Communication cable
Belden-5500FE
Availability:
100 in stock
Belden-5500FE? 305mtr

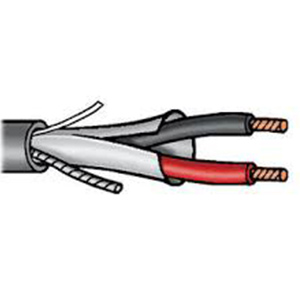

The 5500FE 008500 is a 500ft 2-conductor shielded Security and Alarm Cable with 22AWG (7 x 30) bare copper conductors, polypropylene insulation, Beldfoil? aluminum foil-polyester tape with shorting fold shield (100% coverage), 24AWG (7 x 32) tinned copper drain wire and grey PVC jacket with ripcord. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O’s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 34.5pF/ft Conductor to conductor nominal capacitance
- 62pF/ft Conductor to other conductor and shield nominal capacitance
- 16.1?/1000ft at 20?C Nominal conductor DC resistance
- 16.1?/1000ft at 20?C Nominal outer shield DC resistance
- UL1666 Vertical shaft flame tested
Applications
Security, Commercial, Audio
Belden-5500FE
The 5500FE 008500 is a 500ft 2-conductor shielded Security and Alarm Cable with 22AWG (7 x 30) bare copper conductors, polypropylene insulation, Beldfoil? aluminum foil-polyester tape with shorting fold shield (100% coverage), 24AWG (7 x 32) tinned copper drain wire and grey PVC jacket with ripcord. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O’s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
Based on 0 reviews
Be the first to review “Belden-5500FE”
