Belden-10GXE02 Cable
20 in stock
Belden-10gxe02
-
Specifications
-
Environmental Space: Indoor – Euroclass Eca Suitable Applications: Horizontal and building backbone cable; Support current and future Category 6A and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM
-
Belden-10gxe02

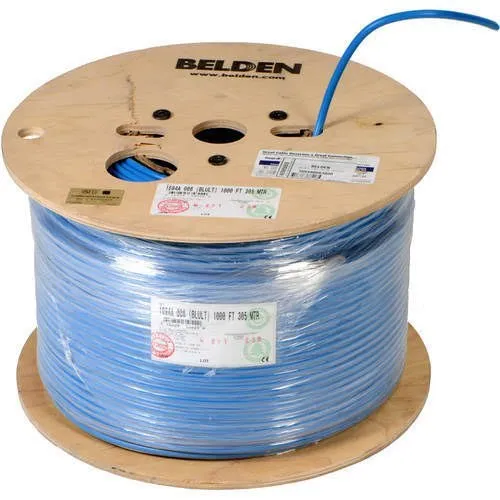

Category 6A (625MHz), 4-Pair, S/FTP shielded, Premise Horizontal Cable, 23 AWG Solid Bare Copper conductors, Foam Polyolefin insulation, each pair with Beldfoil? shield, tinned copper braid shield (30%), LSZH jacket, CPR Euroclass Eca.
Based on 0 reviews
Be the first to review “Belden-10GXE02 Cable”
Related products
-
Belden, Belden Cat6 Cable, Cat6 Cable
Belden 5300UE
The 5300UE 0081000 is a 2-conductor gray unshielded Commercial Audio System Cable with polypropylene (PP) insulation, bare copper conductors and PVC jacket with ripcord.- 0.145?H/ft Nominal inductance
- 21.5pF/ft Conductor to conductor nominal capacitance
- 6.5?/1000ft at 20?C Nominal conductor DC resistance
- 5A/conductor at 25?C Maximum ambient recommended current
- -20 to +75?C Operating temperature range
Applications
Commercial, Audio, Security
SKU: Belden-5300UE -
Belden, Belden Communication cable, Communication cable
Belden-5201UE
Belden-5201UE
The 5201UE 0081000 is a 304.8m 3-core grey Unshielded Multiconductor Cable for use with the security and commercial audio systems. It has stranded bare copper conductors with polyolefin insulation and PVC jacket with ripcord.- -20 to 75?C Operating temperature range
Applications
Industrial, Commercial, Audio, Security, Sensing & Instrumentation
SKU: Belden-5201UE -
Belden, Belden Communication cable, Communication cable
Belden-8723
Belden-8723? 305mtr
The 8723 060U1000 is a 2-pair Multi-conductor Cable with tinned-copper conductors, polypropylene insulation, twisted-pair, individually Beldfoil? shielded (100% coverage) and PVC jacket.- 52? impedance
- 0.17?H/m nominal inductance
- 33pF/ft nominal capacitance conductor to conductor
- 62pF/ft nominal capacitance conductor to other conductor and shield
- 66% nominal velocity of propagation
Applications
Industrial
SKU: Belden-8723 -
Belden, Belden Communication cable, Communication cable
Belden-5300FE
Belden-5300FE
The 5300FE 008U1000 is a 2-conductor Shielded Cable with 18AWG stranded bare copper conductors and polyolefin insulation. This multi-conductor cable comes with a Duofoil? shorting fold aluminum foil-polyester tape insulation and gray PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O’s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
SKU: Belden-5300FE
There are no reviews yet.
