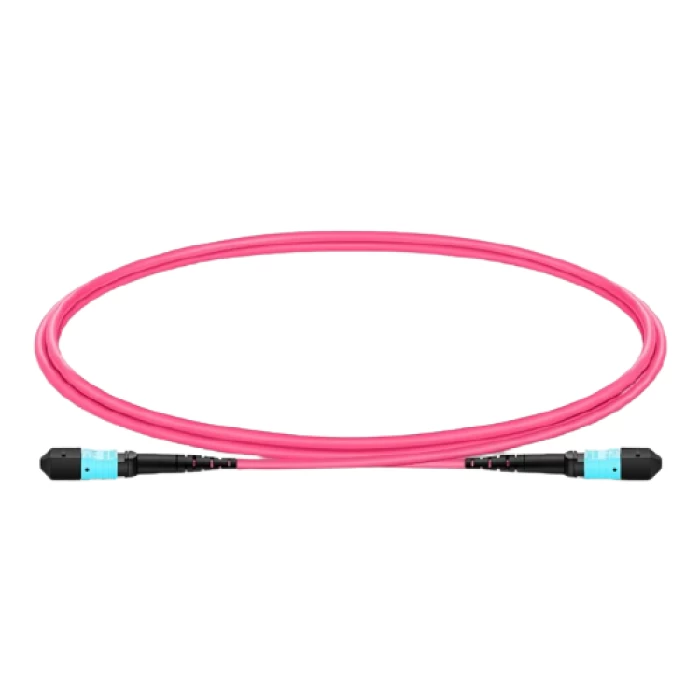

1m (3ft) MTP?-16 APC (Female) to MTP?-16 APC (Female) OM4 Multimode Elite Trunk Cable, 16 Fibers, Plenum (OFNP), Magenta, for 400G Network Connection

16 Fibers MTP Female to MTP Female OM4 Multimode Trunk Cable
16 Fibers MTP trunk cable is designed for 400G QSFP-DD SR8 optics direct connection and supporting 400G transmission for Hyperscale Data Center. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Description

Connector A

US Conec MTP Female (Pinless)

Connector B

US Conec MTP Female (Pinless)

Fiber Mode

OM4 50/125?m

Wavelength

850/1300nm

400G Ethernet Distance

100m at 850nm

Glass Fiber

Corning ClearCurve

Polish Type

APC to APC

Minimum Bend Radius

7.5mm

Insertion Loss

0.35dB Max (0.15dB Typ.)

Return Loss

?20dB

Attenuation at 850nm

?2.3dB/km

Attenuation at 1300nm

?0.6dB/km

Cable Diameter

3.0mm

Cable Jacket

Plenum (OFNP)

Installation Tensile Load

100 N

Long-Term Tensile Load

50 N

Operating Temperature

-10?C to +70?C

Storage Temperature

-40?C to +85?C
