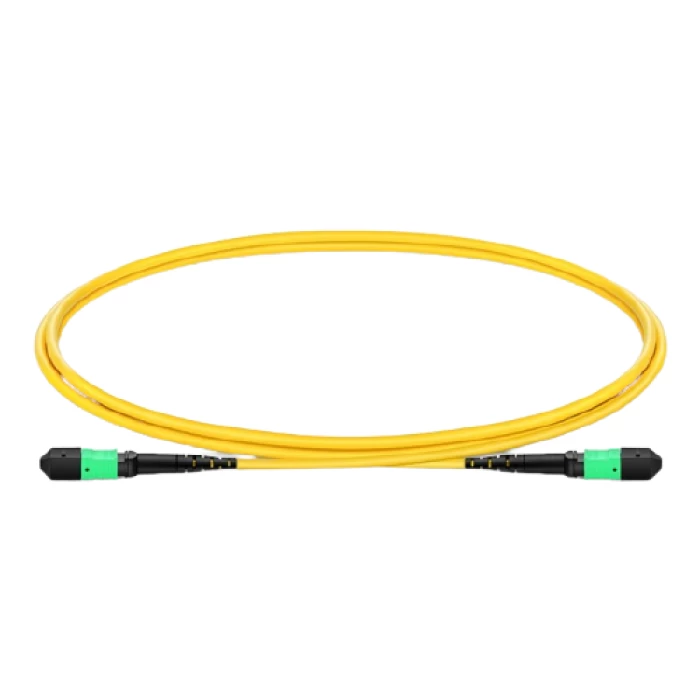

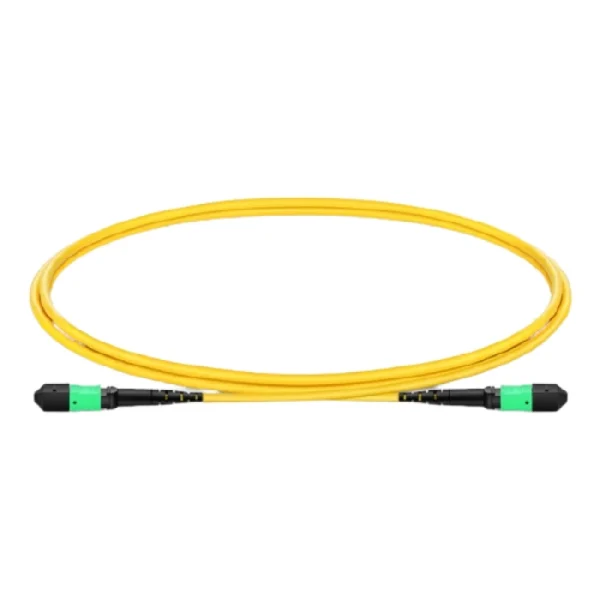

1m (3ft) MTP?-12 (Female) to MTP?-12 (Female) OS2 Single Mode Elite Trunk Cable, 12 Fibers, Type B, Plenum (OFNP), Yellow

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Description

Connector A

US Conec MTP Female (Pinless)

Connector B

US Conec MTP Female (Pinless)

Fiber Mode

OS2 9/125?m SM

Wavelength

1310/1550nm

Polish Type

APC to APC

Minimum Bend Radius

10mm

Insertion Loss

0.35dB Max (0.15dB Typ.)

Return Loss

?60dB

Attenuation at 1310nm

?0.32 dB/km

Attenuation at 1550nm

?0.18 dB/km

Jacket OD

3.0mm

Cable Jacket

Plenum (OFNP)

Installation Tensile Load

100 N

Long-Term Tensile Load

50 N

Operating Temperature

-10?C to +70?C

Storage Temperature

-40?C to +85?C
