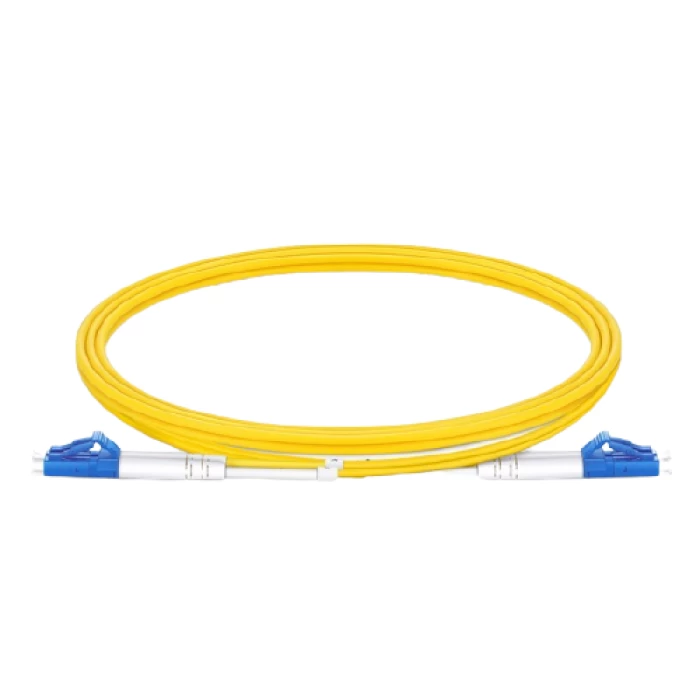

1m (3ft) Grade B LC UPC to LC UPC Duplex Typical 0.12dB IL OS2 Single Mode PVC (OFNR) 2.0mm BIF Fiber Optic Patch Cable
Grade B Connector & 0.12dB Typ. IL
Corning G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use
The Figure 8 Duplex Buckle Cable Can be Separated into 2 Simplex Cables
Ideal for Long-distance and Large-capacity Transmission
Compliant to TIA 604 (FOCIS) and Telecocordia GR-326-CORE Standard
Grade B LC UPC to LC UPC 9/125 Single Mode Bend Insensitive Fiber Patch Cable
IEC 61753-1 random mating specified grade B (?0.12dB mean, ?0.25dB max for >97% of sample), meet large bandwidth and high speed requirements of the latest active optical equipment allowing large streams of data to be transmitted reliably over long distances.
Corning bend insensitive fiber cable ensures less attenuation when bent or twisted compared with traditional fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
Description
Fiber Connector
LC UPC to LC UPC
Fiber Mode
SMF 9/125?m
Fiber Grade
G.657.A1
Fiber Jacket
2.0mm, PVC
Attenuation Grade
Grade B
Return Loss
?50dB
Typical Insertion Loss
?0.12dB
Max Insertion Loss
?0.25dB
Fiber Count
Duplex
Durability
500 Cycles
Min. Bend Radius
(Fiber Core)
10mm
Min. Bend Radius
(Fiber Cable)
10D/5D (Dynamic/Static)
Operating Temperature
-20 to 70?C
Storage Temperature
-40 to 80?C
